The blank is picked from the loader by 4 vacuum cups installed on an arm, mechanically synchronized by the main chain. The blank is driven by the main chain to the forming section. During forward movement the glue is applied. The blank is folded around a mould. Top flaps are folded and glued by a pneumatic folding/pressing device.

真空吸盤在料倉取紙板，通過鏈條輸送到成型區域。在紙板輸送過程中，完成熱熔膠施膠。在成型區域，通過氣動部件完成成型。

MAIN FEATURES OF THE MACHINE

主要功能

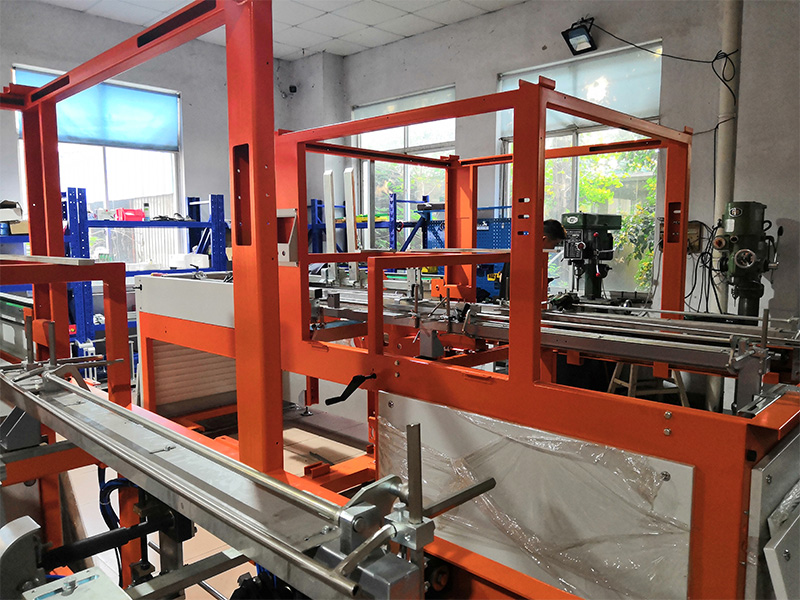

Welded and painted steel frame.

碳鋼機架,防銹噴涂處理；

Horizontal loader to help blank positioning.

水平料倉，易于紙板定位；

Blank picking by vacuum cups controlled by Venturi system (one Venturi system for each vacuum cup).

文丘里系統產生真空，每一只吸盤由一只閥組系統控制；

Blank pushing chain controlled by inverter.

變頻器控制紙板進紙鏈條；

Forming head controlled by inverter.

變頻器控制成型模具；

Fast change over by means of hand wheels equipped with direct drive indicators.

手輪和計數器裝置，使模具更換更加便捷；

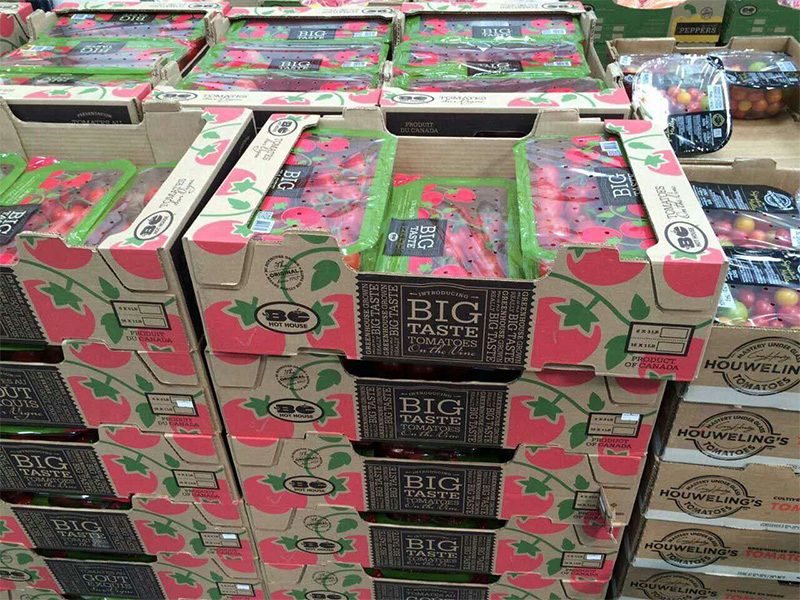

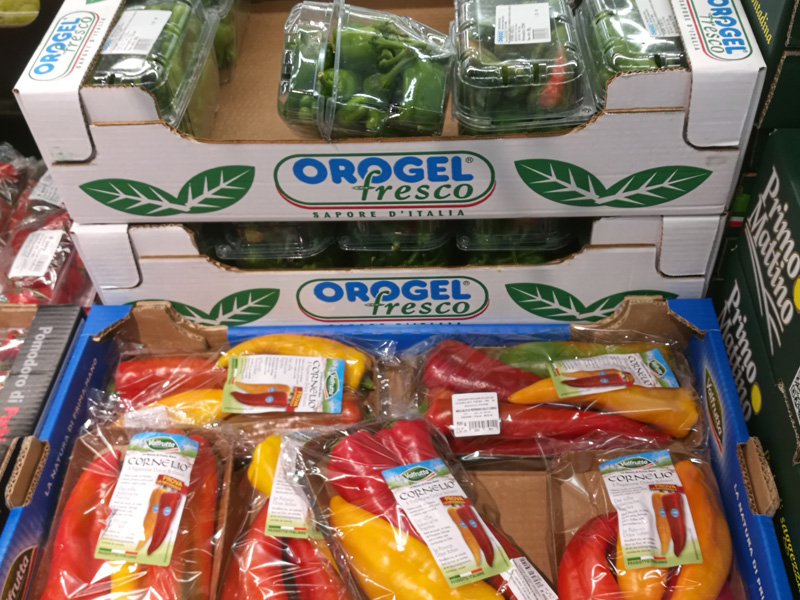

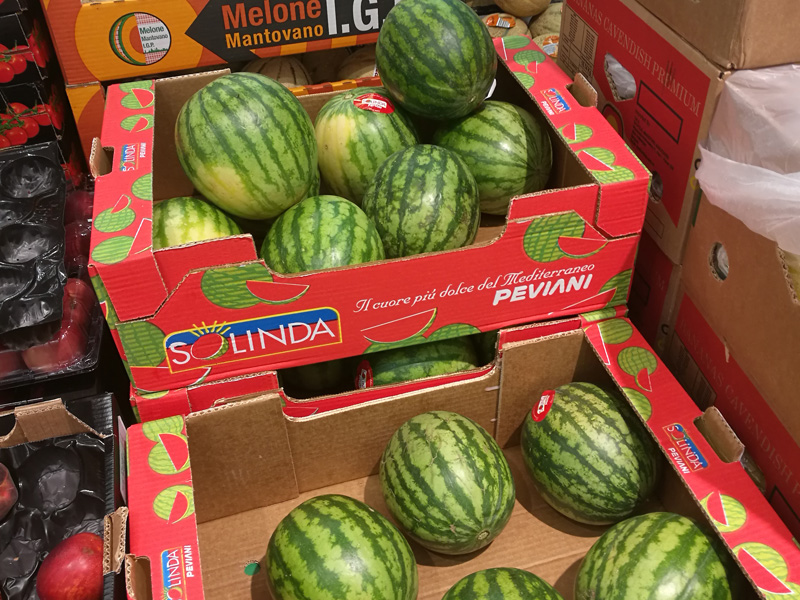

Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width.

搖蓋成型由氣缸動作完成，并可以增加長邊和短邊的兩層紙板結構；

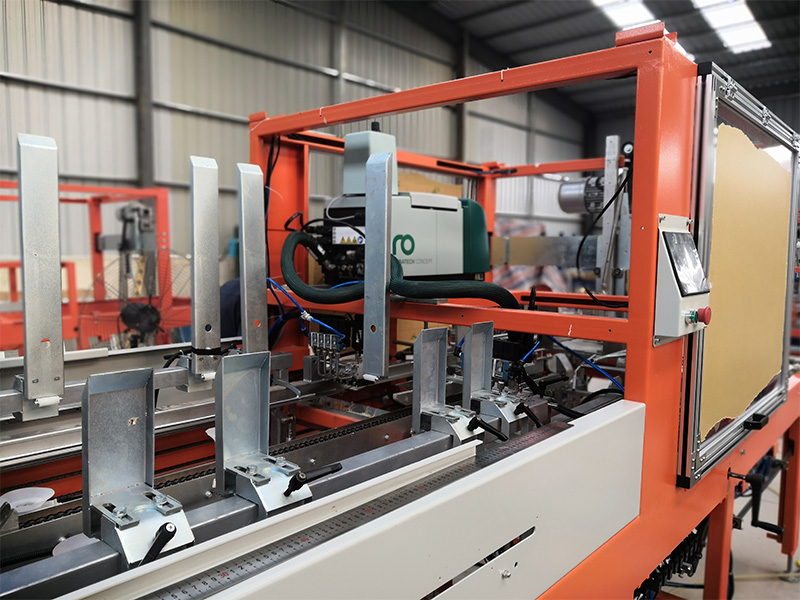

Glue applicator: SMI OEM Standard Gluing machine (ROBATECH or Nordson or Valco Melton，options） equipped by 2 guns（3/4 guns optional）.膠機容量：SMI OEM標準膠機(瑞士樂百得\美國諾信\美國閥科等可選)膠機系統，兩管兩槍（三管三槍/四管四槍可選）；

Transparent safety doors with aluminium frame, controlled by safety micro switches.

可視化設計，鋁型材框架更加美觀，并配置安全開關。

User friendly interface with touch screen that helps the operator in reading and programming machine parameters. Available size parameters, machine status and errors list. Capacity of storage of 100 different programs.

人機界面，觸摸屏操作。可顯示工作狀態、參數和報警信息等，可存儲100個 模塊；

Painting : frame RAL 2004 ; panels RAL 7035.

油漆: 框架RAL2004, 面板RAL7035；

TECHNICAL DATA

技術參數

Max Speed: 2400 Trays/hour.

最大產量：2400只/小時；

Production running speed depends on box shapes, board dimensions and quality.

實際生產速度與箱型、紙板尺寸和質量有關；

Electrical supply: 400 V – 50Hz 3 phases + N + G

電源標準：400 V – 50 Hz ?3 phases + N + G ?（國內380V)

Control voltage: 24 VDC

控制電壓：24 VDC

Working temperature: from 5°C to 35°C.

工作溫度：5°C-35°C

Installed power: 5.65KW

裝機功率：5.65 KW

Air consumption: 11 Nl / cycles.

壓縮空氣：11升/循環，標準大氣壓下；

Weight: 1280 KG 重 ?量：約1280公斤
